Used
Warranty: 3 months

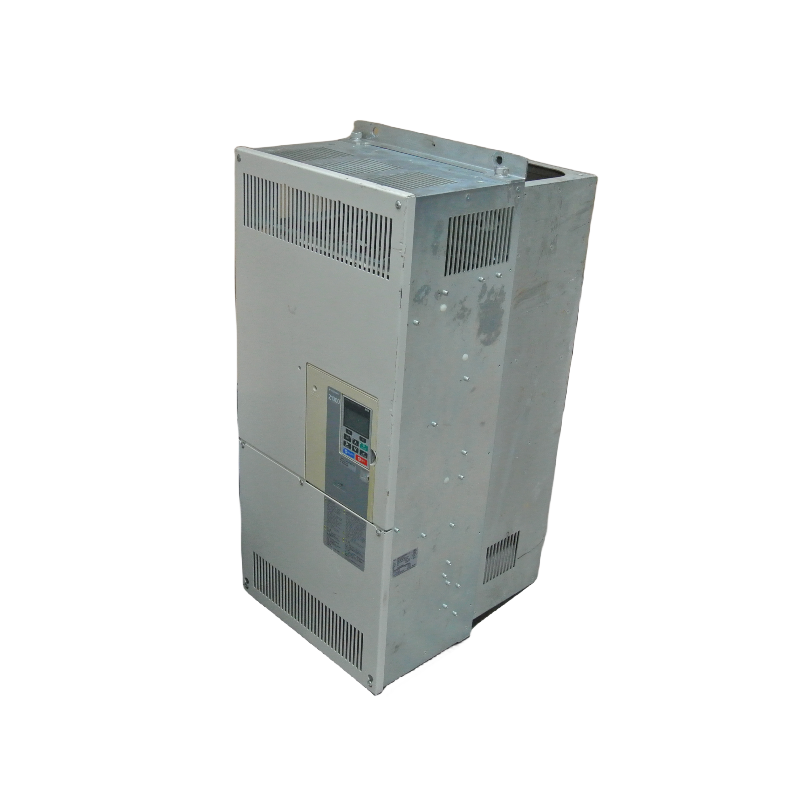

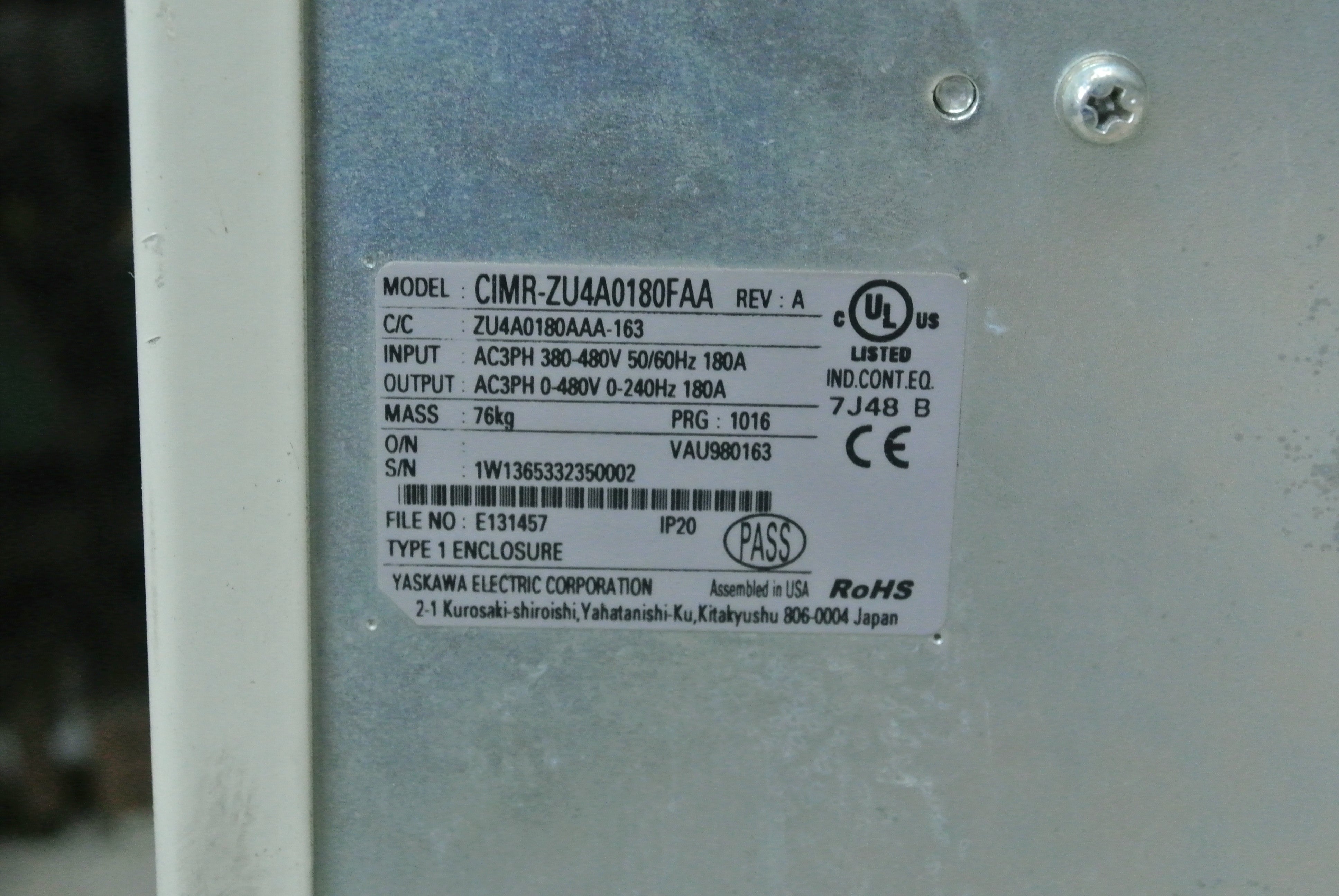

Module Number: CIMR-ZU4A0180FAA
Product Description
- Type: HVAC Drives
- Input Voltage: 480 V
- Power Rating: 150 hp / 111.9 kW
- Ambient Operating Temperature: -10 to 40'C / 14 to 104'F
- Output Frequency: 0.01 to 240 Hz
- Digital Input: 0.01 to 240 Hz
- Digital Input: Multi-Function Programmable Digital Inputs (24Vdc): 7
- Analog Input: Multi-Function Programmable Analog Inputs (0-10VDC or 4-20mA): 2
- Relay Output: Fault Relay Output (Form C - 2 Amps at 250Vac max): 1, Multi-Function Programmable Relay Output (Form A - 2 Amps at 250Vac max): 3
- Analog Output: Multi-Function Programmable Analog Outputs (0-10Vdc or 4-20mA): 2
- Network Communications: Built-in BACnet, RS485/422 - Programmable up to 76.8 kbps
- Optional: LonWorks, Metasys / APOGEE FLN
- Motor Construction: Squirrel Cage Induction, Interior Permanent Magnet
- Drive Center to Top: 15.26 in
- Overload Capacity: 110% for 60 seconds, 175% instantaneous
- Control Methods: Open Loop Vector Control for Permanent Magnet motors
- V/Hz Control
- Enclosures: NEMA Type 1 / IP20 : 3 - 100 HP 208V and 3 - 250 HP 480V
- Open Type / IP00 : 125 - 150 HP 208V and 300 - 500 HP 480V
- Standard I/O: 24 Vdc, 150 mA Transducer or Transmitter Power Supply for customer use: 1
- Harmonic Mitigation: Built-in 5% line impedance for input harmonic reduction.
- Noise Filter: On board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment.
- Serial Communications: Embedded BACnet communications (BTL Certified), along with Modbus/Memobus, Metasys and Apogee FLN.
- Ratings: Plenum Rated (UL 1995). Seismic Rated (IBC 2006 - Certification 12/2011). Made with RoHS compliant materials.
- Internal Real-Time Clock: Time and date stamping for events, along with timer controls for starting stopping and speed changes without the need for external controls.
- PI Feature: Maintains a set point for closed loop control of fans and pumps for pressure, flow or temperature regulation and eliminates the need for a closed loop output signal from a BAS. Independent PI to control an external device in the system.

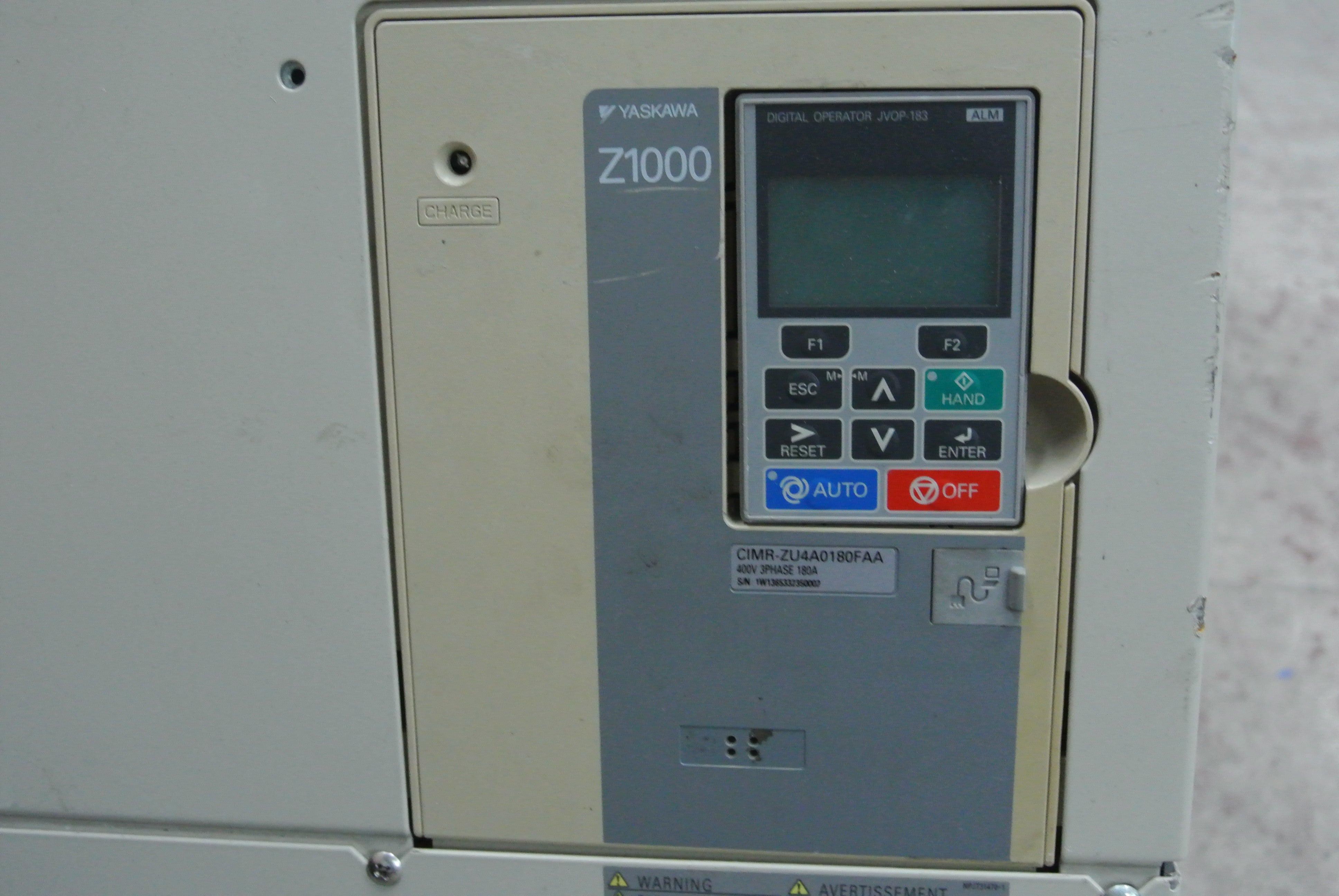

- LCD Operator: 5-Line 16 character alpha-numeric, easy to read and understand display, with Hand-Off-Auto functions.
- Carrier Frequency: 5 kHz carrier frequency with dynamic noise control for quiet motor operation.
- Application Macros: Choose from pre-configured set up macros to match the application for quick and easy set up.
- Sealed Heatsink: Allows for drive to be mounted in a NEMA 12 enclosure with heatsink external.
