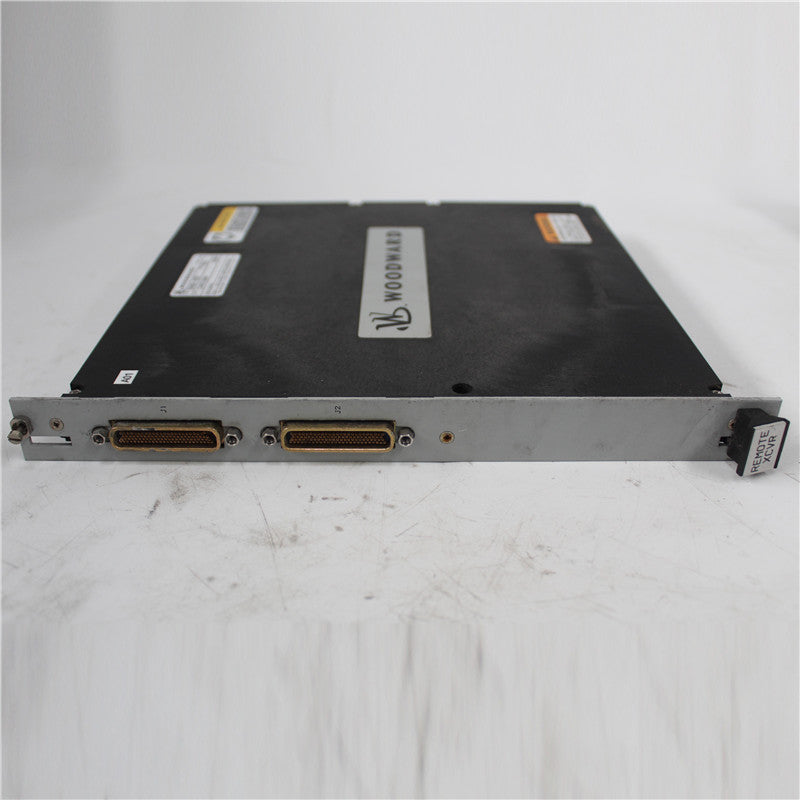

WOODWARD 5466-355 REMOTE CHASSIS TRANSCEIVER

Used

Warranty: 3 months

Module Number: 5466-355 REMOTE XCVR

Contact E-mail: info@roockss.com

Functional Description
5466-355 is a Remote Chassis Transceiver developed by Woodward. The Remote XCVR module is only available for CPU 68040 systems. The Remote XCVR module receives and sends control, data, and address information to and from the Main XCVR module via cable. This module must be installed in each Remote I/O Chassis that is wired to the Main Chassis. The Remote XCVR module connects to the chassis' VME bus. The system employs a parallel interface distinguished by its utilization of high-speed differential line drivers that operate seamlessly at the VME transmission rate. This configuration ensures efficient and rapid data transfer between system components, minimizing signal degradation and electromagnetic interference. In tandem with this interface, the system's cable connectivity is established through the integration of 100-pin metal shell Micro-D connectors, with two connectors allocated for each module. This connector design not only ensures a robust and dependable connection but also facilitates streamlined communication, enhancing the overall reliability and performance of the system.

Component Installation
There are no switches or LEDs on the Remote XCVR module.
Except for the last expansion chassis in the chain, all expansion chassis should use the Remote XCVR module without termination resistors. This module is required to be installed in Slot 1.
The Remote XCVR module with termination resistors should be used in the final expansion chassis in the chain. This module is required to be installed in Slot 1.

Features
The Remote Transceiver module's bus receiver/driver communicates with the VME bus, exchanging control, data, and address information. If this chassis is to be accessed, the chassis decoder activates the receiver/driver of this chassis' Remote Transceiver module to receive or send information.
Parallel Interface: High-speed, differential line drivers operating at VME transmission rate
Cable Interface: 100 pin metal shell Micro-D connector
Check the cable connections if the Remote XCVR module is not working or is not working properly. If the module is still not working properly after checking the cable connections, replace the cables that connect to it. Replace the module if it is still not working properly after replacing the cables.
