Installation and Commissioning Key Points
4.1 Installation Requirements
It is recommended to install the drive vertically to ensure heat dissipation and ventilation.
Allow at least 50mm of clearance for easy air circulation and maintenance.
Power input, servo motor output, and communication interfaces must be wired accurately according to the wiring diagram.
4.2 Grounding and Protection
Independent grounding to prevent signal interference.
Configure fuses or circuit breakers to ensure system safety in abnormal situations.
4.3 Parameter Tuning
Use SEW debugging software to set motor parameters, acceleration/deceleration times, and torque limits.
For initial power-up, it is recommended to operate at low speed and observe the operating status and feedback signals.
Adjust control parameters based on the actual load to optimize motion performance.
Application Scenario Examples
Machining Equipment
Drives CNC machine tool motion axes, ensuring high-precision positioning and high-speed cutting.
Conveying and Handling Systems
Precisely controls conveyor belt speed and position for continuous material transport.
Packaging Machinery
Motion control of high-speed packaging lines improves production cycle time and accuracy.
Robotics Systems
Drives the joints of industrial robots for precise trajectory control.

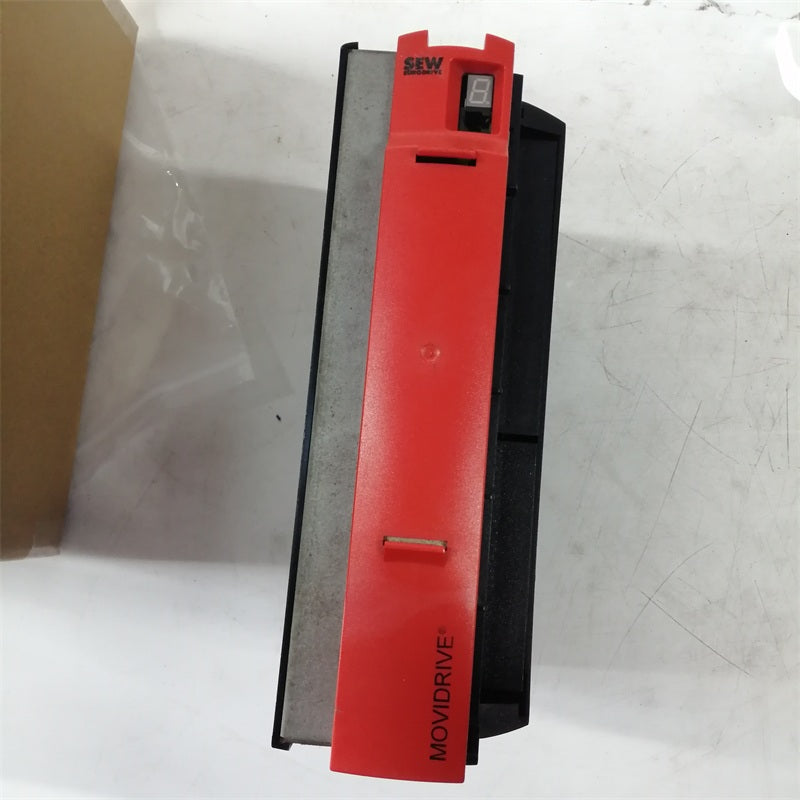

The MDX61B0110-5A3-4-0T features a modular design and supports multiple control modes, including speed control, position control, and torque control. It is primarily used in small and medium-power servo systems, suitable for industrial applications such as machining, conveying equipment, packaging machinery, and industrial robots.
- Rated input voltage: Three-phase 400V AC
- Control modes: Speed, position, and torque control
- Communication interfaces: CANopen, Profibus, and EtherCAT (optional)
- Ambient operating temperature: 0°C to 50°C
- Protection functions: Overcurrent, overvoltage, overtemperature, and short-circuit protection
